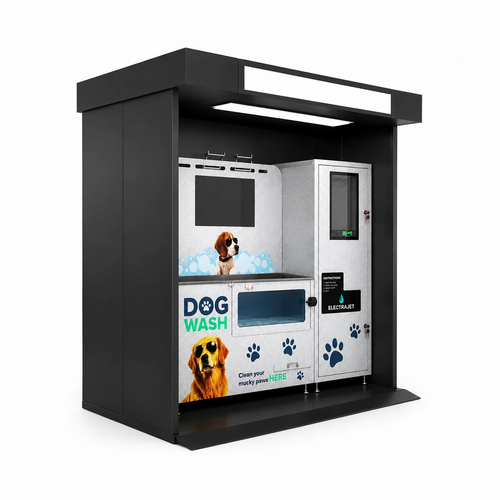

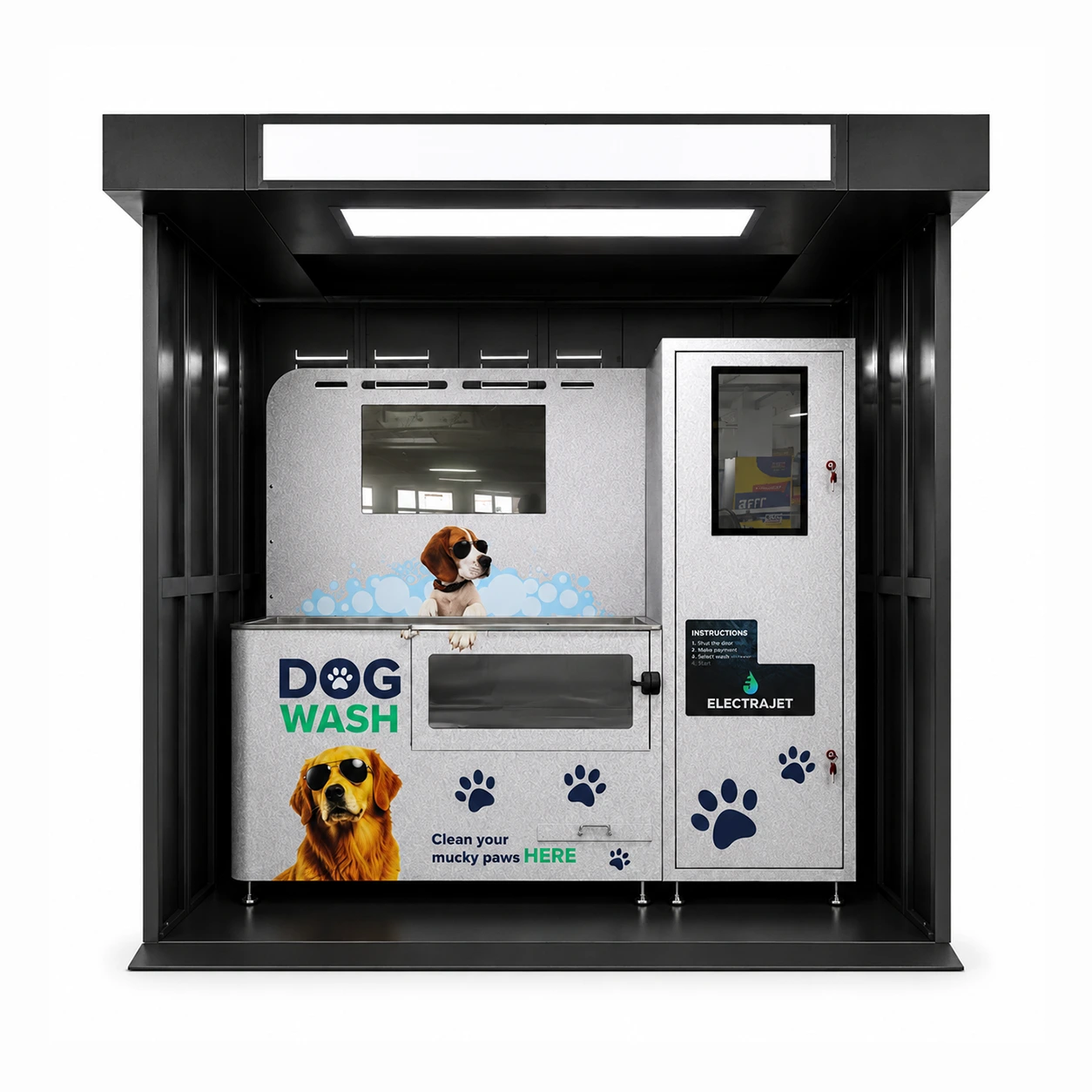

Outdoor Self-Service Dog Wash Station for Communities & Pet-Friendly Sites

Turn an underused outdoor or semi-outdoor area into a convenient 24/7 self-service pet-washing amenity. This commercial dog wash station combines a weather-protected shelter, stainless-steel wash bay, touchscreen controls and unattended payment options for residential communit...

Technical Specifications

Overall Dimensions

W200 × D63 × H180 cm

Material

304 Stainless Steel

Touchscreen

21.5" Waterproof · Android 11

Advertising Display

32" LCD Screen

Water Heater

40L · Adjustable Temperature

Liquid Reservoirs

4 × 5L Independent Tanks

Request a Quote

OUTDOOR SELF-SERVICE SOLUTION

Built for 24/7 Pet Care

Turn approximately 2 m² of outdoor or semi-outdoor space into a convenient unattended dog-washing amenity.

Outdoor Weather Protection

A protective black shelter, sealed controls and stainless-steel wash bay support outdoor or semi-outdoor operation.

40L Adjustable Hot Water

Built-in hot water capacity supports comfortable back-to-back dog-washing sessions.

21.5-inch Smart Touchscreen

Waterproof Android interface provides guided programs, timing, payment and operating instructions.

AIoT Remote Management

Monitor usage, revenue, liquid levels, temperature and fault alerts from the optional cloud platform.

BUSINESS VALUE

Add a High-Demand Amenity Without Adding Staff

Automated payment, configurable wash sessions and remote monitoring help communities and operators provide pet care around the clock.

24/7

Always-Available Pet Amenity

Offer convenient self-service washing without appointment scheduling or grooming staff.

2m²

Compact Site Footprint

Requires about 2 m² plus water, drainage, grounded power and service access.

★

Resident & Guest Appeal

A clean, branded outdoor station adds visible value to pet-friendly properties.

↗

Scalable Multi-Site Operation

Standardize programs, branding and monitoring across communities or destination sites.

WEATHER-READY DESIGN

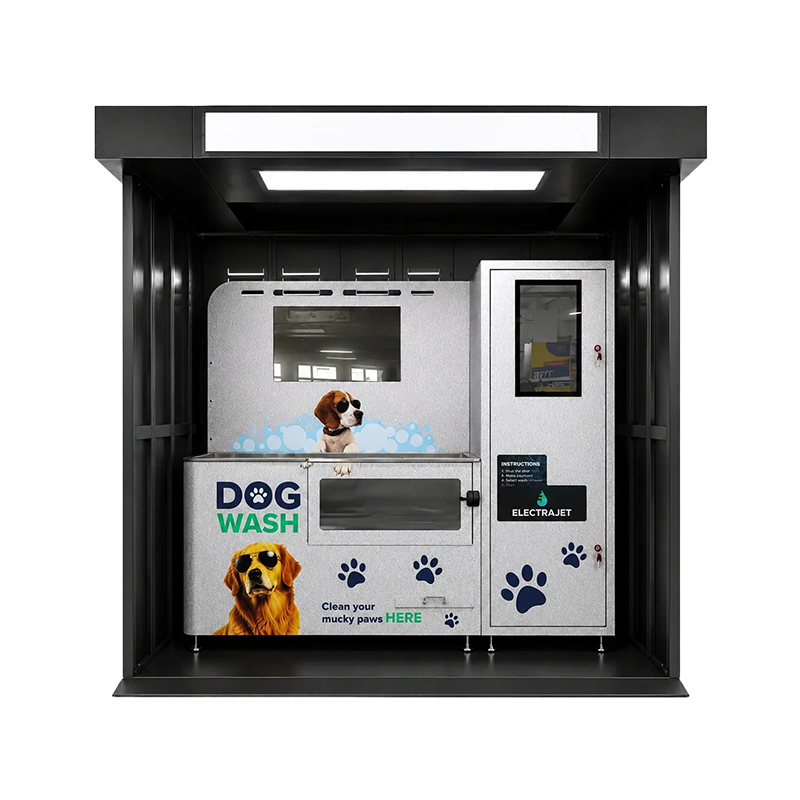

Protective Shelter + 304 Stainless Steel Wash Bay

A dark protective enclosure, corrosion-resistant wash area, waterproof touchscreen and integrated lighting support outdoor or semi-outdoor deployment.

40L Adjustable Water Heater Provide consistent warm water with real-time temperature monitoring for safer, more comfortable washing.
4 Independent 5L Liquid Reservoirs Separate lines for shampoo, conditioner, optional treatment and disinfectant help prevent product mixing.
Hair & Debris Filtration Multi-stage filtration captures hair, fur and debris to reduce drain blockage and simplify maintenance.

WASH SYSTEM

Configurable Programs for a Complete Dog Wash

Offer rinse, shampoo, conditioner, optional treatment, disinfection and dual-speed warm-air drying in one station.

Quick Rinse

A water-only program for muddy paws and light cleaning.

Shampoo & Rinse

Controlled shampoo application followed by a thorough rinse.

Condition & Care

Conditioner and optional configured care products for coat hygiene.

Warm-Air Drying

Dual-speed warm air helps remove moisture after washing.

Final program names, timing, pricing and liquid configuration can be tailored to the project.

USER FLOW

Simple Self-Service Washing in Five Steps

Prepare the dog, select and pay, disinfect and rinse the wash bay, complete the guided wash, then dry and reset the station.

Prepare the Dog

Place the dog in the stainless-steel wash bay and attach the safety lead.

Select & Pay

Choose a wash program, review the session time and complete payment.

Disinfect & Rinse the Wash Bay

Before washing, use the rinse and disinfection cycle to clean the wash bay and prepare a hygienic surface.

Wash & Care

Follow the screen guidance for rinse, shampoo, conditioner and optional care.

Dry & Reset

Use the warm-air dryer, clear loose hair and leave the bay ready for the next user.

PAYMENT & ACCESS

Flexible Payment Options for Every Location

Configure card, QR, NFC, e-wallet, optional coin payment or compatible access-card solutions according to the market.

Credit / Debit Card NFC / E-Wallet / Access Card QR Payment / Optional Coin

Payment hardware and provider availability vary by country and project.

REMOTE MANAGEMENT

Monitor Usage, Revenue and Service Alerts

Optional AIoT tools help operators review sessions, revenue, liquid levels, temperature and fault alerts remotely.

Usage & Revenue Reports Review wash sessions, operating time and revenue by machine or location.
Liquid-Level Monitoring Track shampoo, conditioner, treatment and disinfectant levels with refill alerts.
Temperature & Fault Alerts Monitor water temperature, pumps, connectivity and service notifications remotely.

OUTDOOR CONSTRUCTION

Weather-Protected Shelter & Stainless Wash Bay

Built for visible outdoor or semi-outdoor locations that need durable, easy-to-clean commercial equipment.

Black Protective Shelter Helps shield the wash equipment and provides a strong architectural presence.
304 Stainless Steel Wash Bay Corrosion-resistant surfaces support hygiene and routine cleaning.
Waterproof Controls & Lighting A sealed touchscreen and integrated LED lighting support day and night use.
Service-Friendly Layout Dedicated access doors simplify refilling, inspection and maintenance.

Additional climate protection may be required in freezing, high-heat or severe-weather environments.

SMART USER INTERFACE

21.5-inch Touchscreen & 32-inch Advertising Display

Guide users through selection, payment and timed washing while presenting branded or community content.

Configurable Wash Programs Set program names, duration, included liquids and pricing.
Time-Based Operation Display the remaining session time with configurable pause or extension options.
Flexible Payment Interface Support card, QR, NFC, e-wallet and optional coin hardware.
Digital Advertising Use the dedicated screen for guidance, community notices or promotions.

Final screen size, software functions and payment integrations depend on the selected configuration.

WATER & TEMPERATURE

40L Adjustable Hot-Water System

Provide comfortable warm water for repeat sessions with configurable temperature control.

40L Built-In Heater Supports multiple washes and back-to-back community use.
Digital Temperature Display Shows water temperature for easier operating oversight.
Adjustable Settings Configure water temperature according to climate and operating policy.
Safety-Oriented Design Final electrical and heating specifications are matched to the destination market.

Confirm inlet pressure, power supply and local safety requirements during site planning.

LIQUID DELIVERY

Four Independent 5L Reservoirs

Separate pumps and lines deliver configurable wash products without sharing the same liquid path.

Shampoo Dedicated reservoir and pump for the primary wash cycle.
Conditioner Add coat-care service as a standard or premium program.
Optional Treatment Configure flea-care or another approved product for the project.
Disinfectant Support cleaning and hygiene procedures between users.

Product selection and dilution settings should follow supplier instructions and local regulations.

DRYING & FILTRATION

Warm-Air Dryer and Multi-Stage Hair Filtration

Improve pet comfort after washing while helping protect drainage from loose hair and debris.

Dual-Speed Warm Air Choose low or high airflow according to coat type and pet comfort.
Hair Capture Built-in filtration traps loose fur during each session.
Debris Separation Helps remove dirt and larger particles before wastewater reaches the drain.
Easy Cleaning Access Serviceable filters support routine operator maintenance.

Filter-cleaning frequency depends on usage volume, breed mix and site conditions.

DAILY OPERATIONCLOUD OPERATIONS

AIoT Monitoring and Service-Friendly Maintenance

Optional cloud tools and accessible service compartments simplify unattended multi-location operation.

Usage & Revenue Dashboard Review sessions, operating time and revenue trends remotely.
Liquid-Level Alerts Know when wash products need refilling before service is interrupted.
Temperature & Fault Alerts Monitor important machine conditions and receive service notifications.
Remote Configuration Update selected pricing, programs or digital content according to the system package.

Cloud features, connectivity and remote controls depend on the final software configuration.

IDEAL LOCATIONS

Built for Communities and Pet-Friendly Destinations

Install the station where dogs get dirty and owners need a convenient wash before returning indoors.

Apartment Communities

Place near dog runs, parking entrances or shared outdoor areas.

HOAs & Gated Communities

Offer residents a premium pet amenity with configurable access and pricing.

Parks, Campgrounds & Beaches

Serve high-need locations where muddy or sandy dogs need cleaning.

Resorts & Pet-Friendly Businesses

Add convenient 24/7 pet care for guests and local customers.

Final site planning should confirm water, drainage, grounded power, climate protection and local requirements.

OEM & BRANDING

Match the Station to Your Site and Brand

Customize the shelter color, stainless-steel cabinet graphics, illuminated sign, touchscreen interface, language, wash programs and payment hardware.

Customize shelter color, cabinet graphics, logo and pet-care artShelter & Cabinet Brandingork.

Cabinet colors, logo Customize the shelter color, cabinet graphics, logo and pet-care artwork.nd full-body graphics.

Illuminated Header Sign

Use the top lightbox for community, operator or sponsor branding.

Touchscreen UI & Language

Customize interface language, instructions, program names, timing and pricing.

Payment & Access Hardware

Configure local cashless payments, optional coin systems or compatible access cards.

PROJECT SUPPORT

From Site Planning to After-Sales Support

We support utility planning, configuration, branding, payment integration, delivery, remote installation guidance and after-sales service.

Site & Utility Planning

Confirm space, water, drainage, power, connectivity and climate protection before production.

Remote Installation Guidance

Receive manuals, setup video, remote diagnostics and operator training.

Warranty & Spare Parts

18-month warranty options, replacement components and continuing technical support.

FAQ

Frequently Asked Questions

Installation, payment, outdoor use, maintenance, customization and warranty answers for international buyers.

What does the installation site require?

Approximately 2 m² of level space, a 1/2" or 3/4" cold-water inlet, a properly sloped 1 1/2" or 2" drain, grounded 110V or 220–240V power and service access.

Is the station suitable for outdoor use?

The protective shelter, 304 stainless-steel wash area and waterproof controls support outdoor or semi-outdoor use. Additional climate protection is recommended for freezing or severe weather.

Which payment methods are supported?

Card, QR, NFC, e-wallet, optional coin and compatible access-card solutions can be configured according to the destination market.

What routine maintenance is required?

Clean the wash bay and hair filter, refill liquid reservoirs, inspect hoses and drainage, and review any cloud alerts. Frequency depends on session volume and local conditions.

Can the station be customized for our project?

Yes. Shelter color, cabinet graphics, logo, touchscreen language, wash programs, pricing, payment hardware and advertising content can be configured.
