All-in-One Wash Cycle
Shampoo, conditioner, disinfectant water, warm water and high-speed drying in one compact station.
SMART SELF-SERVICE PET CARE

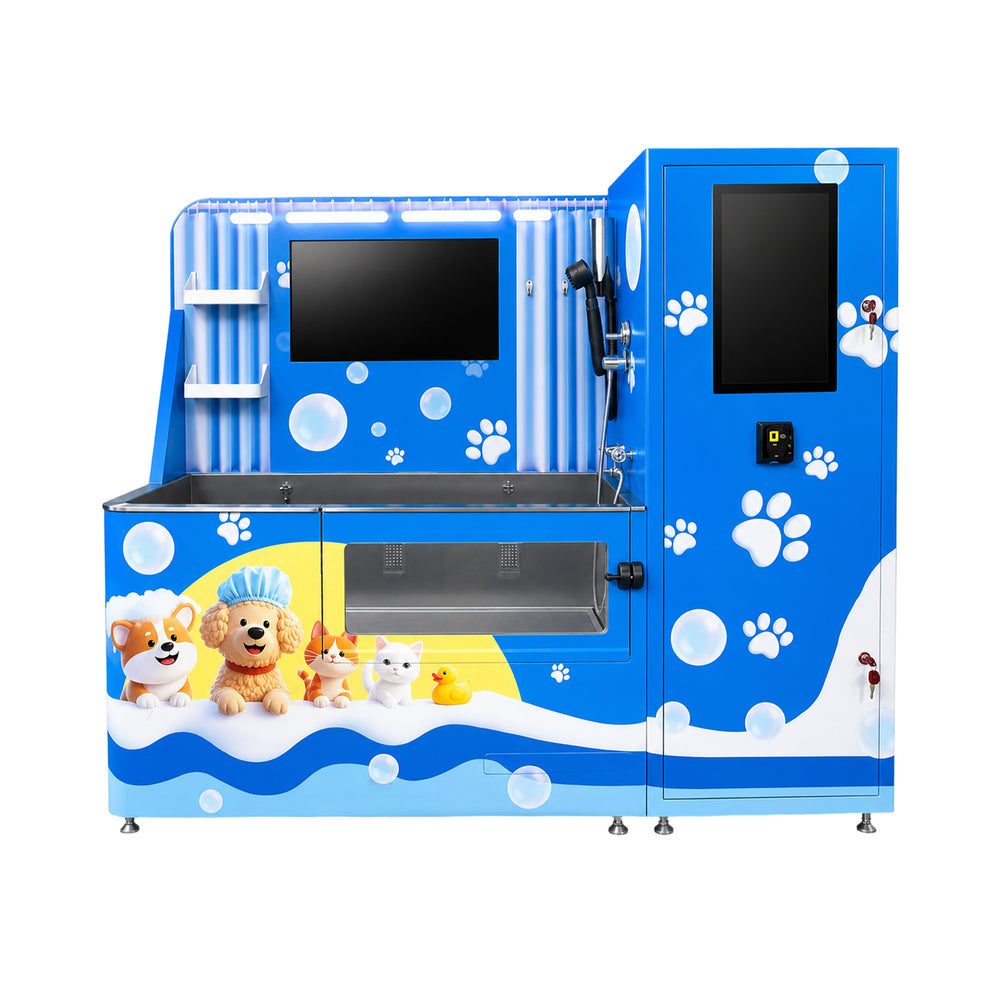

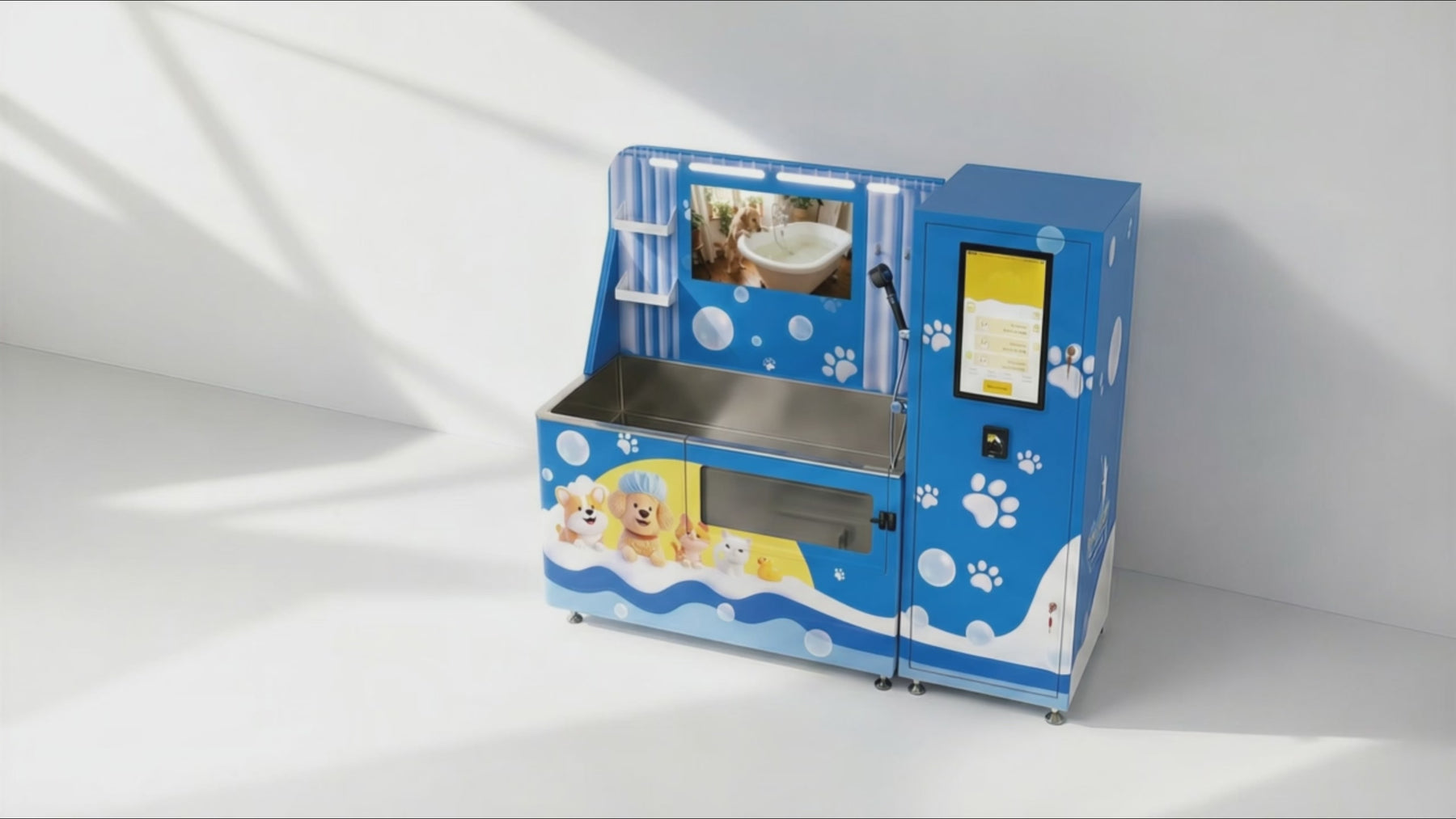

Beach Pet Self-Service Washing Station | Smart Dog Wash & Dry System
A fully automated beach pet washing station designed for coastal environments. Integrates washing, rinsing, and drying in one smart unit. 24/7 unmanned operation with cashless payment support. Weatherproof and corrosion-resistant, ideal for beaches, resorts, and pet-friendly tourism locations.
24/7Unattended service
21.5 inTouchscreen control
32 inAdvertising display
304Stainless steel body
- Wash, rinse, condition, disinfect and dry in one station
- Warm-water control with adjustable spray volume
- 4G/Wi-Fi connectivity for remote advertising and sub-accounts
Payment hardware is configured separately for each project.
COMMERCIAL DOG WASH PLATFORM
Built for convenient self-service pet care
Simple Touchscreen Operation
A 21.5-inch touch display guides service selection, countdown timing and wash controls.
Commercial-Grade Structure
304 stainless steel supports hygiene, corrosion resistance and easier day-to-day cleaning.
Remote-Ready Operation
4G/Wi-Fi connectivity supports remote advertisement uploads and sub-account management.
FOR COASTAL & OUTDOOR LOCATIONS
A cleaner pet-care amenity for every trip
Give guests and local pet owners a convenient place to rinse, wash and dry dogs after beach visits, hikes or everyday outdoor activities. The compact self-service format suits resorts, campgrounds, communities and pet-friendly commercial spaces.
BUSINESS VALUE
Solve the challenges of traditional pet washing
Reduce Staffing Pressure
A guided self-service process helps operators add a pet-care amenity without assigning staff to every wash.
Extend Service Availability
Support convenient dog washing beyond normal grooming hours with an unattended service format.
Add Service in Less Space
The integrated station combines washing, care and drying functions in a compact commercial footprint.
HOW IT WORKS
Eight simple steps from start to dry
The touchscreen, shower controls and integrated care functions guide pet owners through a clear self-service wash.
01
START
Guide the dog into the wash tub, secure the access area and make sure the pet is comfortable before starting.
02
SELECT SERVICE
Choose the service and wash time on the 21.5-inch touchscreen, then follow the configured payment instructions.
03
RINSE
Wet the coat with the shower head and adjust the warm-water temperature and spray volume for comfort.
04
SHAMPOO
Apply shampoo evenly and work it through the coat. Use the pause and continue control whenever needed.
05
CONDITION
Select conditioner to help leave the coat softer, smoother and easier to manage after rinsing.
06
DISINFECT
Use the disinfectant-water option according to the operator procedure and the selected care program.
07
DRY
Remove excess moisture with the integrated high-speed warm-air dryer and adjust the process for the pet.
08
FINISH
End the session, guide the clean dog out safely, then rinse the tub and remove hair or debris for the next user.

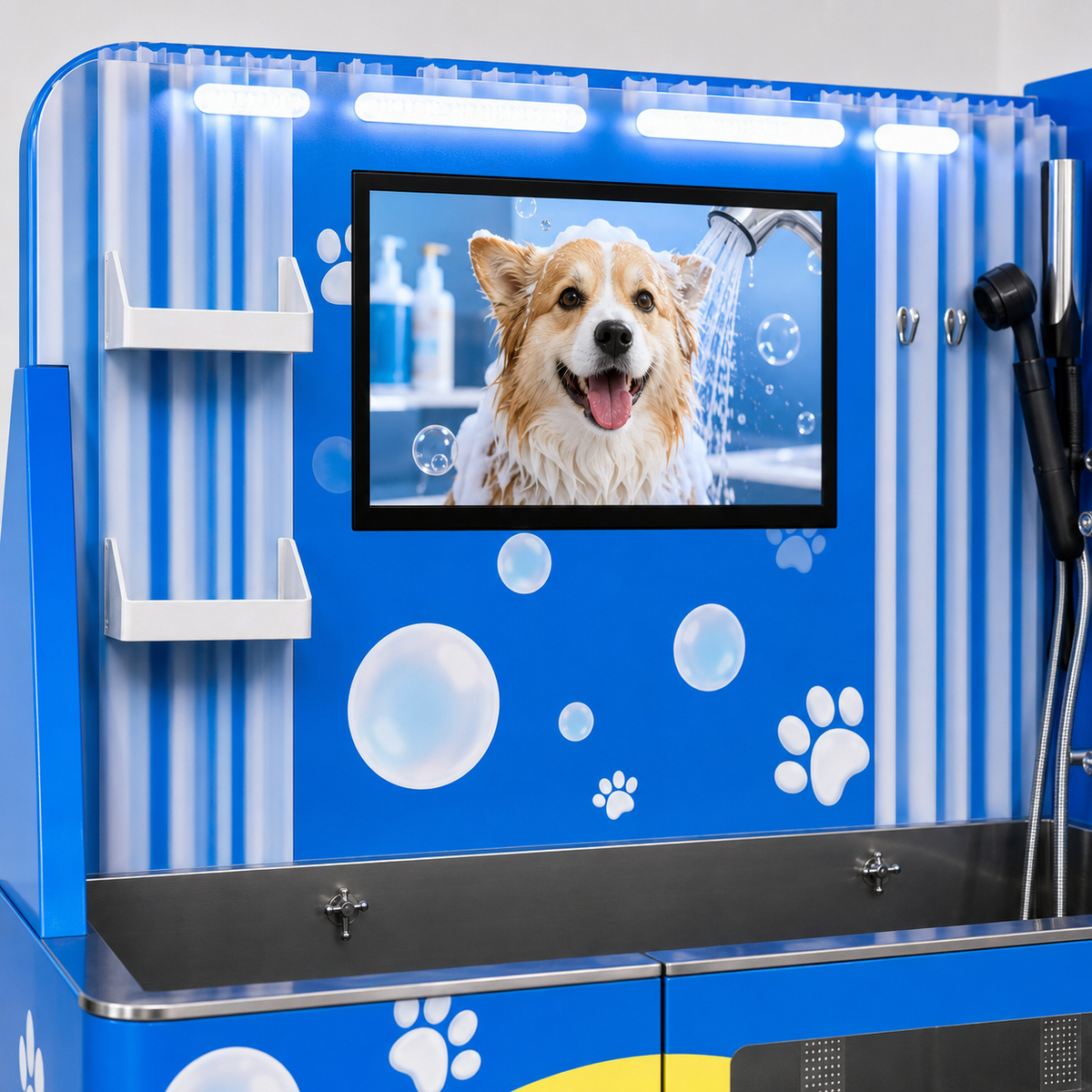

DUAL-SCREEN EXPERIENCE
Touch Control and Digital Advertising
A 21.5-inch touchscreen presents dog-wash functions and session countdown information, while the separate 32-inch LCD can display advertising content.
- Clear customer-facing wash controls
- Dedicated large-format promotional screen
- Remote advertisement upload support

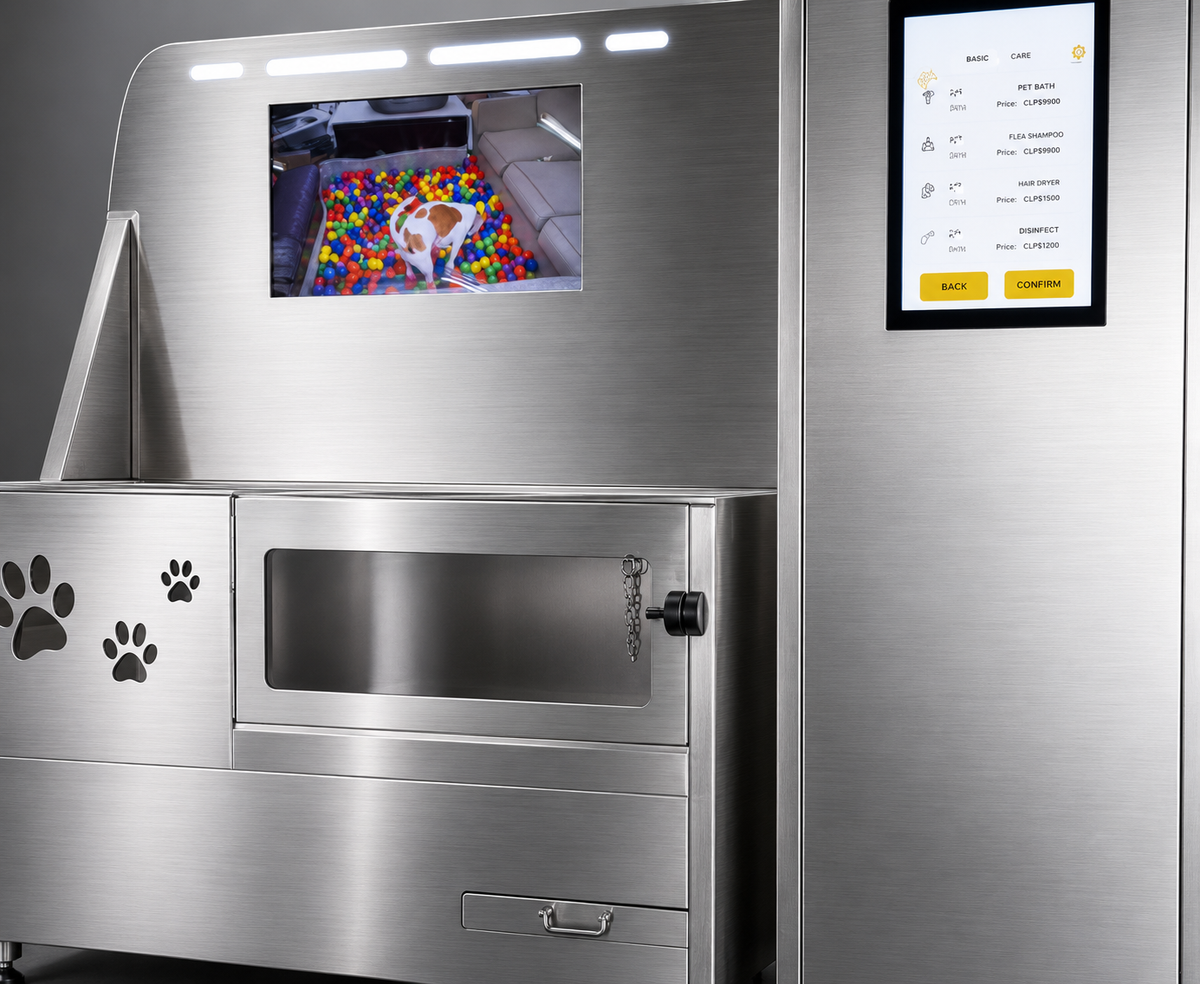

COMMERCIAL CONSTRUCTION
304 Stainless Steel Wash Structure
The wash tub and main structure use 304 stainless steel for durability, corrosion resistance and easier routine cleaning in commercial environments.
- Stable triangular support structure
- Adjustable feet for on-site leveling
- Lockable cabinet access for operators
EASIER MAINTENANCE

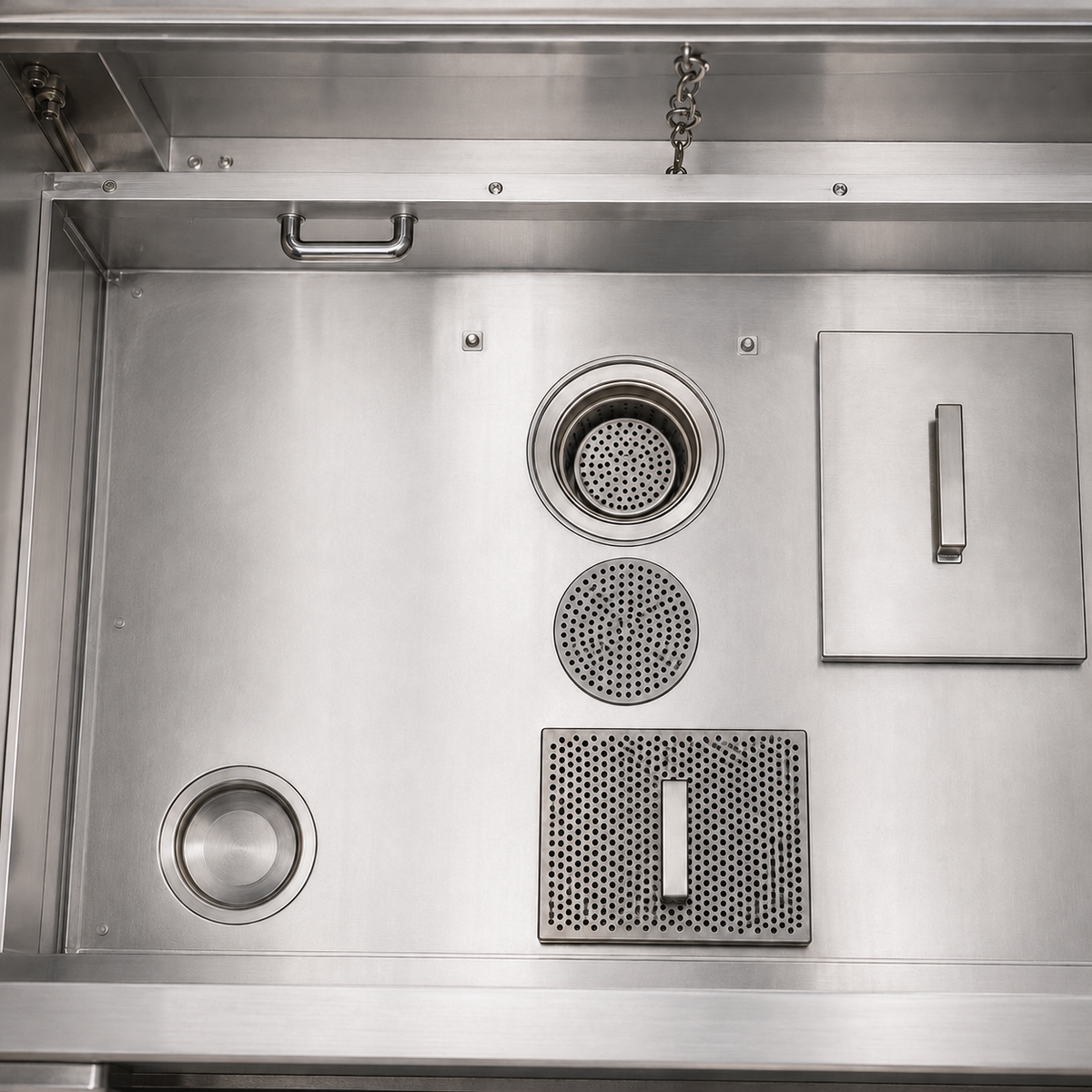

4-Stage Hair & Debris Filtration System
The built-in 4-stage filtration system captures pet hair, loose fur, dirt and debris during every wash. It helps reduce drain blockages, maintain smoother wastewater flow and simplify routine cleaning for high-frequency commercial locations.
By reducing debris buildup, the filtration system supports more stable operation, easier maintenance and a cleaner self-service dog wash experience.
CONNECTED OPERATION

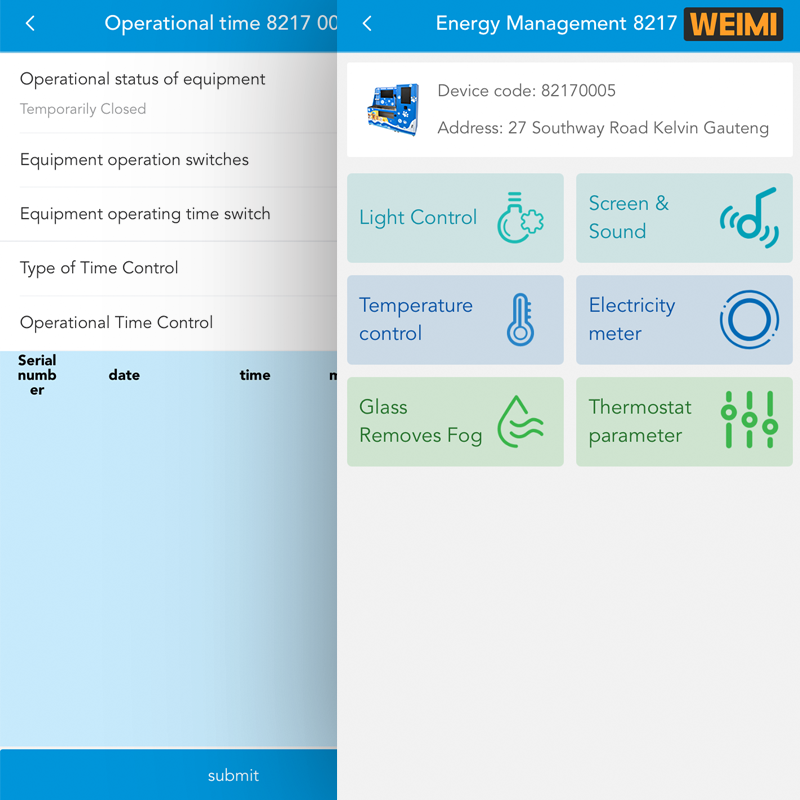

4G/Wi-Fi Remote Content Management
The integrated 4G/Wi-Fi module supports remote advertisement uploads and sub-account management, helping multi-location operators organize screen content more efficiently.
Available functions depend on the selected software, network and project configuration.
FLEXIBLE TRANSACTIONS

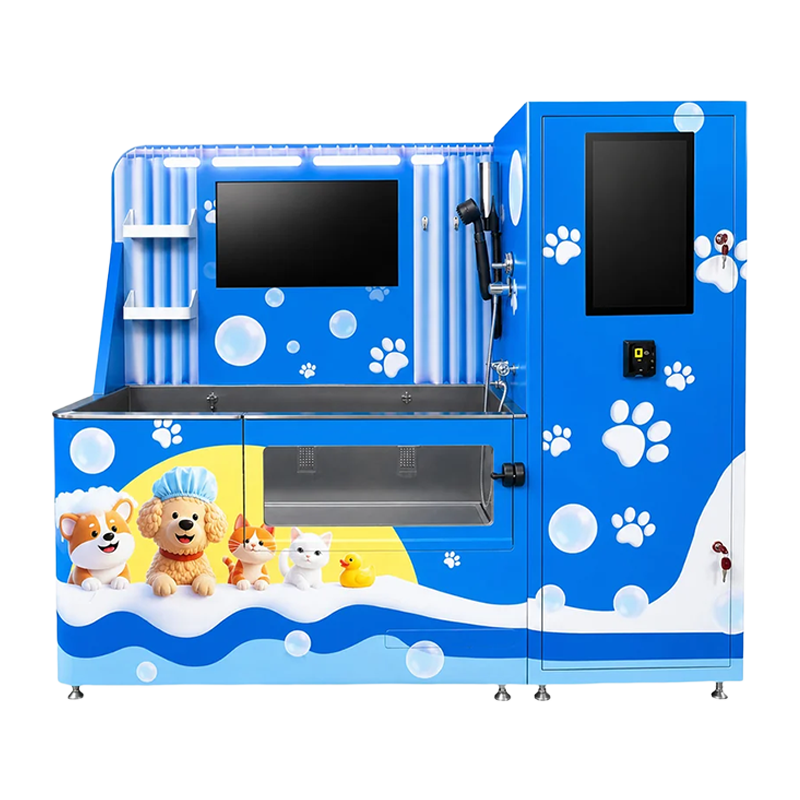

Configurable Payment Terminal Area
The cabinet provides positions for project-specific payment equipment such as a card reader, cash acceptor or recycler, and coin unit.
Important: Payment hardware is not included in the standard machine configuration and must be selected separately during quotation.
OPERATOR-FRIENDLY DETAILS
Designed for Daily Commercial Use
Practical details help customers use the station comfortably and give operators easier access for routine service.
- LED task lighting and shower holder
- High-speed integrated blower dryer
- Door locks supplied with two keys per lock
- Accessible control cabinet and adjustable feet
PRODUCT SPECIFICATIONS
WM22-DW Technical Specifications
Specifications are summarized from the supplied WM22-DW configuration sheet.
- Model
- WM22-DW
- Overall Dimensions
- W209 × D63 × H180 cm
- Displays
- 21.5-inch Touchscreen + 32-inch Advertisement Screen
- Internet
- 5G Wi-Fi / 4G SIM Card / LAN
- Operating System
- Android 7.1
- Memory
- 16G ROM / 2G RAM
- Communication Protocol
- MDB / RS232
- Water Heater
- 40L
- Liquid Canisters
- 4 canisters, 10L per canister
- Care Liquids
- Shampoo / Conditioner / Flea & Tick / Disinfectant
- Liquid-Level Detection
- Sensors detect liquid volume in each canister
- Pumps
- 4 pumps + 1 water-pressure booster
- Wash & Dry Hardware
- 1 shower head / 1 blowing dryer
- Lighting
- LED lighting strips
CUSTOMER APPLICATIONS
Self-service dog wash projects around the world

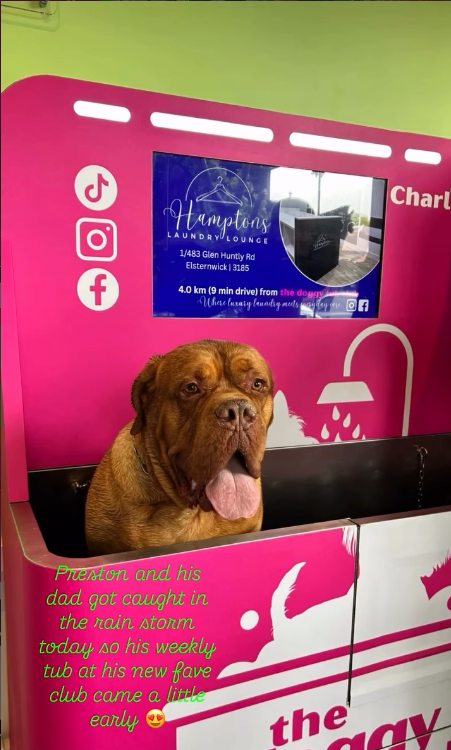

The Doggy Tub Club Creates a Community Pet Laundrette in St Kilda
The Doggy Tub Club brings a practical pet laundrette experience to St Kilda, combining DIY dog washing with pet gear washing and drying for...
View case ↗
How to Prevent Dog Hair from Clogging Self-Service Dog Wash Machines
Learn why dog hair clogs dog wash machines and how better drainage, filtration, and maintenance routines help keep pet wash stations running smoothly.
View case ↗

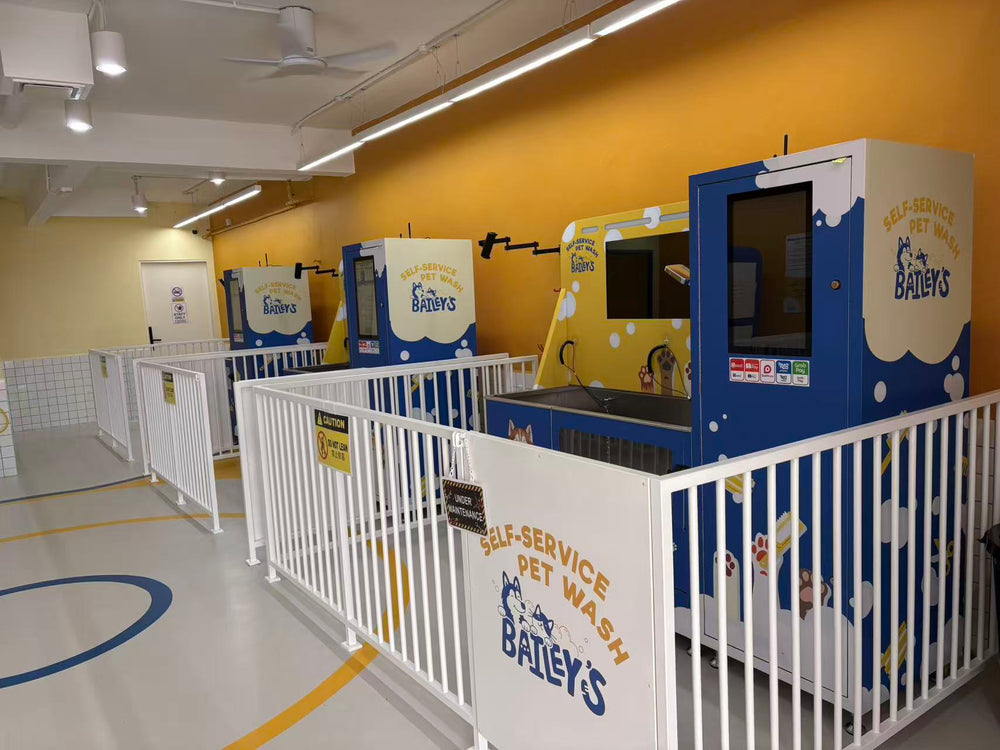

Bailey’s Pet Wash Brings 24-Hour Self-Service Pet Washing to Subang Jaya
Bailey’s Pet Wash brings a 24-hour self-service pet washing experience to Subang Jaya, Malaysia, offering pet owners a cleaner and more flexible alternative to...
View case ↗FREQUENTLY ASKED QUESTIONS
Planning Your Self-Service Dog Wash Project
Key information about functions, configuration, installation and daily operation.
What pets can use this dog wash station?
The station is designed mainly for dogs of different sizes. Suitability for other pets should be confirmed according to the animal, local operating rules and the final machine configuration.
What wash and care functions are included?
The system supports warm-water rinsing, shampoo, conditioner, disinfectant water and high-speed drying. The exact consumables and programs can be confirmed for each project.
Is the machine fully automatic?
It is a guided self-service system. Users select the service on the touchscreen and operate the shower and dryer controls, while countdown timing and configured functions help structure the session.
What are the two screens used for?
The 21.5-inch touchscreen is used for dog-wash functions and service timing. The separate 32-inch LCD is designed for advertisements, instructions or other promotional content.
Can advertising content be updated remotely?
Yes. With the configured 4G/Wi-Fi connection and software, operators can remotely upload advertising content and manage sub-accounts. Available functions depend on the selected network and platform.
Is a payment system included?
No. Payment hardware is not included in the standard configuration. The terminal area can be prepared for selected options such as a card reader, cash acceptor or recycler, or coin unit, subject to project compatibility.
What material is the machine made from?
The main wash structure uses 304 stainless steel for commercial durability, corrosion resistance, hygiene and easier routine cleaning.
Can users adjust the water and pause the wash?
Yes. The control system supports warm-water temperature adjustment, spray-volume adjustment, and pause or continue operation for a more comfortable wash.

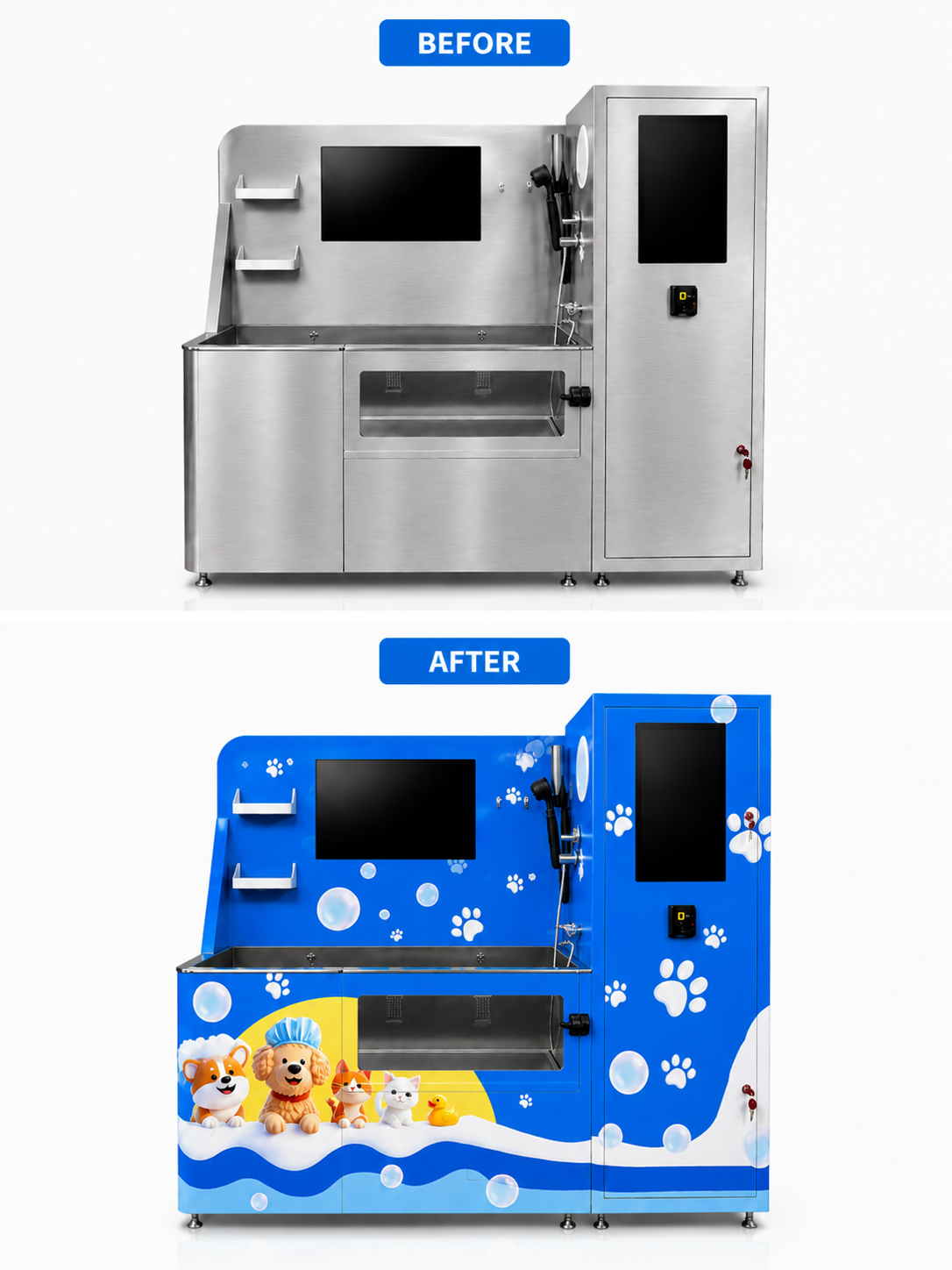

Can the exterior and functions be customized?
Yes. OEM/ODM options can include exterior colors, branding stickers, screen content and selected functional configurations. Final options are confirmed during quotation.

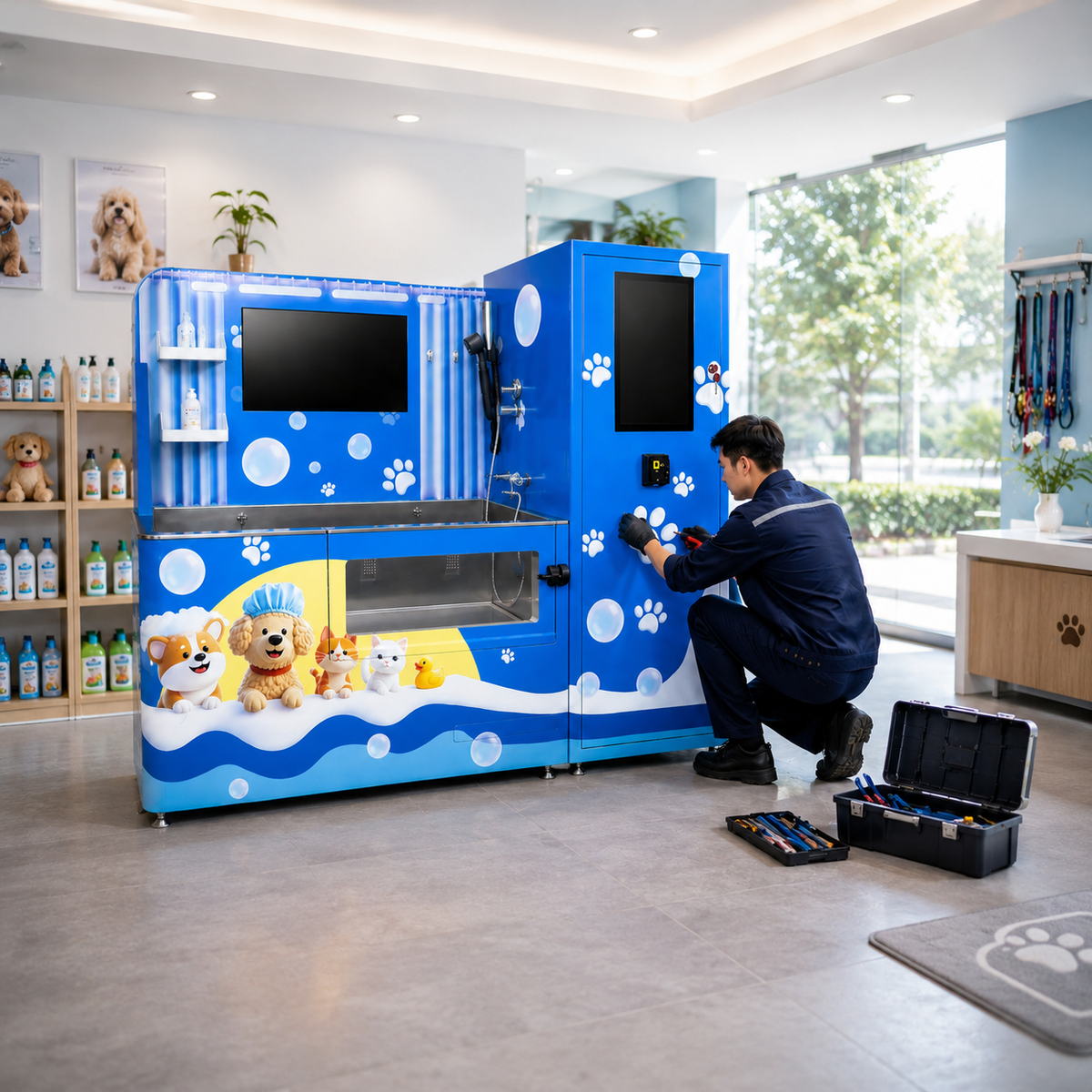

What maintenance and support are required?
Routine work includes cleaning the tub, removing hair and debris, refilling consumables, and checking the shower head, hoses, dryer, locks and configured terminals. The product is offered with an 18-month warranty and factory technical support, subject to the final order terms.
