Frozen Storage
Recommended operating zone for packaged ice cream and frozen desserts.
WM22DS · FROZEN RETAIL SYSTEM

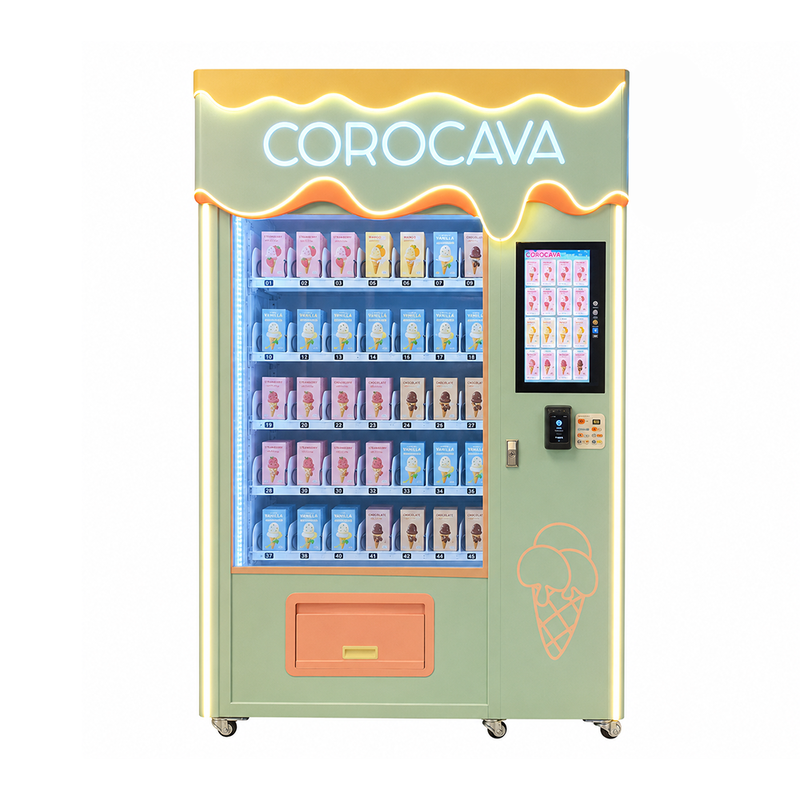

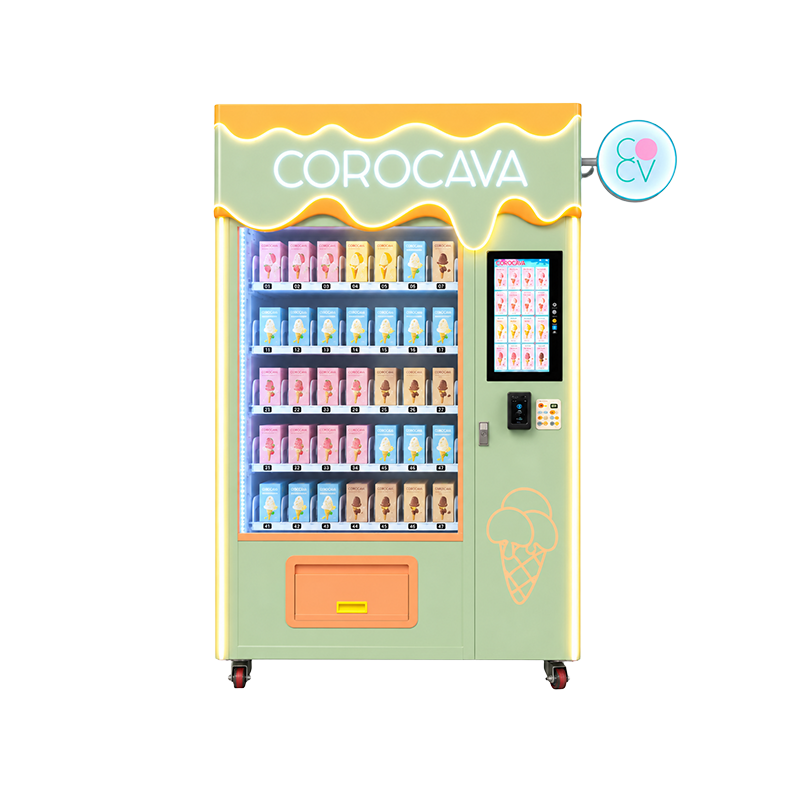

Commercial Ice Cream Vending Machine with Spring Lanes & Smart Elevator
Commercial ice cream vending with adjustable spring lanes and a precision smart elevator for gentle, reliable 24/7 delivery.
Product Specifications
Model
WM22DS
Overall Dimensions
Approx. W126 × D86 × H193 cm
Standard Layout
6 shelves × 9 lanes; up to 54 selections
Touchscreen & OS
21.5-inch touchscreen / Android 11
Connectivity
Wi-Fi / SIM card / LAN
Payment & Protocol
Card / E-payment / Bill / Coin / MDB
Contact us for specifications, customization and factory pricing.
CORE ADVANTAGES
Frozen Right. Delivered Gently.
Stable frozen storage, adjustable spring lanes and a precision smart elevator protect ice cream from cabinet to pickup.

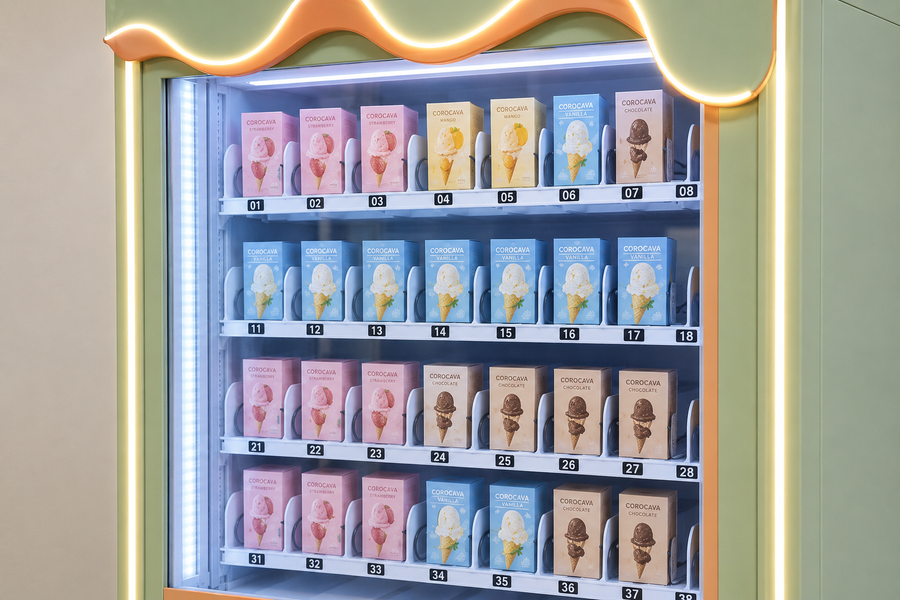

Smart Elevator Delivery
The precision elevator lowers every item smoothly to the secure pickup box.
Flexible Selections
6 shelves × 9 lanes support up to 54 selections, depending on package dimensions.
Cloud Management
Real-time inventory, sales data, device status and remote alerts.
BUSINESS VALUE
Turn Visitor Needs Into 24/7 Retail Revenue
Serve customer demand without adding a staffed retail counter.
24/7 Essential Access
Sell packaged ice cream and frozen desserts around the clock in high-traffic locations.
Low-Staff Operation
Operate unattended frozen retail with remote sales, stock and device monitoring.
High-Impact Branding
Present products, prices and purchasing instructions.
Multi-Location Expansion
Review sales, stock and supported machine alerts remotely.
TEMPERATURE CONTROL

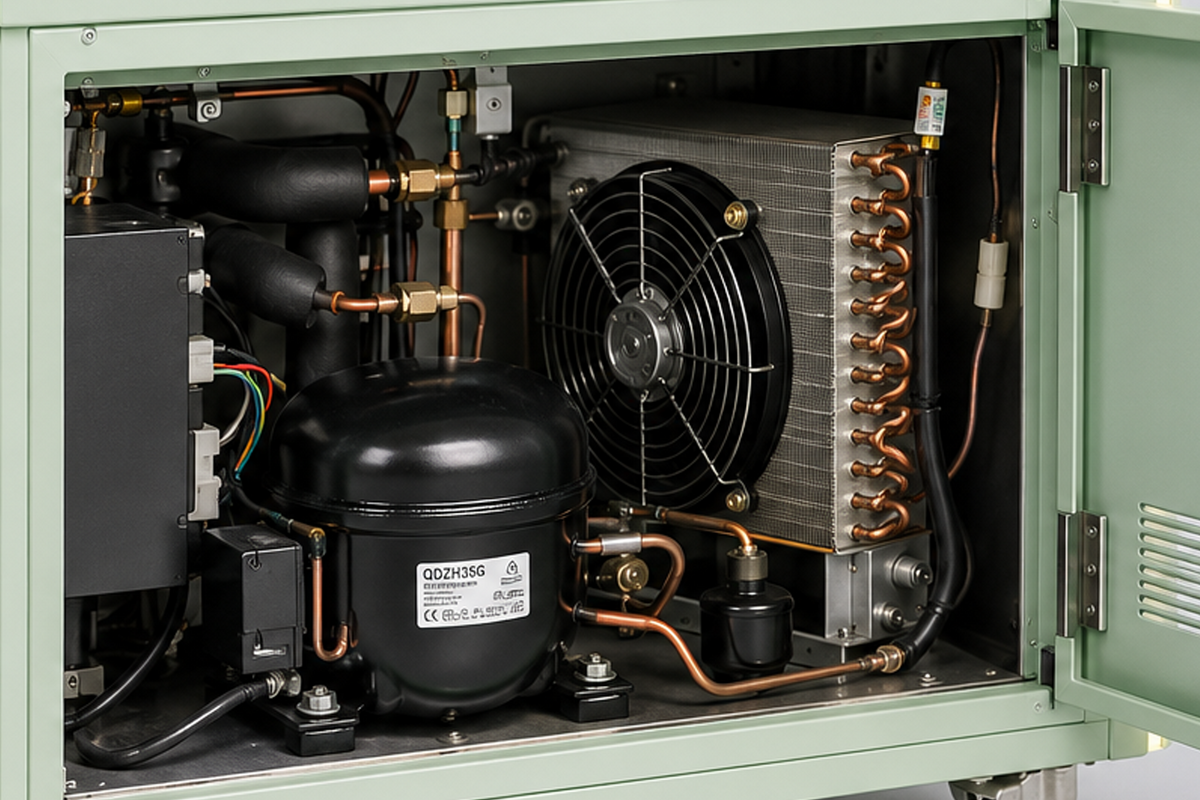

Reliable Frozen Storage System
The insulated cabinet and commercial refrigeration system help maintain the configured low-temperature environment for packaged ice cream and frozen desserts.
-
Stable Temperature Control Maintain the configured storage temperature for frozen products.
-
Insulated Cabinet Reduce temperature fluctuation and cooling loss.
-
Temperature Monitoring Review temperature information when supported by the selected system.
PRODUCT COMPATIBILITY
Flexible Product Configuration
Configure channels for different package sizes, flavors and frozen product categories.
Boxed Ice Cream
Suitable for packaged ice cream boxes in compatible dimensions.
Ice Cream Bars
Configure channels for wrapped ice cream bars and frozen snacks.
Mochi Ice Cream
Support selected small-box frozen desserts after compatibility testing.
Frozen Desserts
Create a mixed selection of compatible frozen dessert products.
For reliable dispensing, provide product dimensions, weight, package photos or physical samples before production.
SHOPPING FLOW
Simple Shopping in Four Steps
A clear self-service process helps customers complete purchases quickly.
1

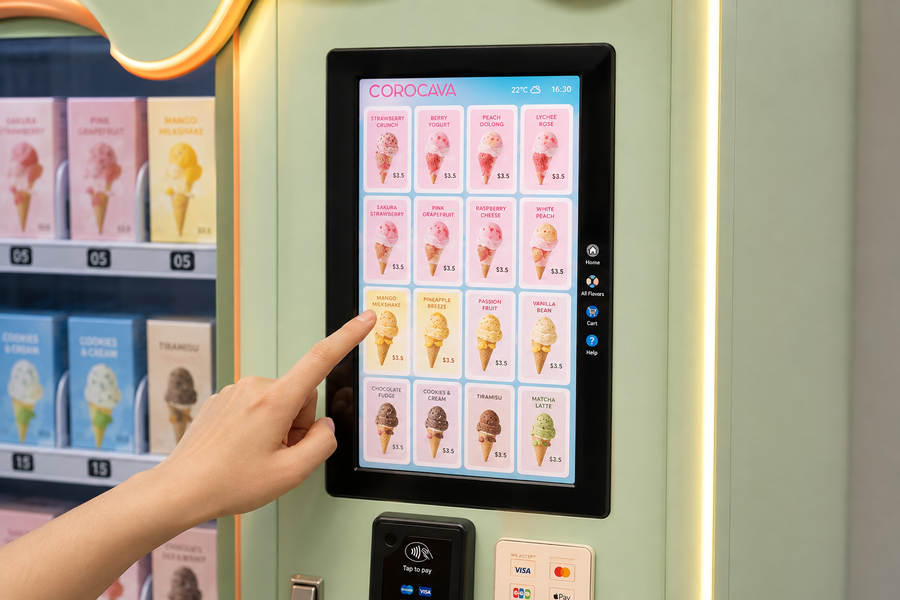

Select a Product
Browse the available products on the touchscreen.
2

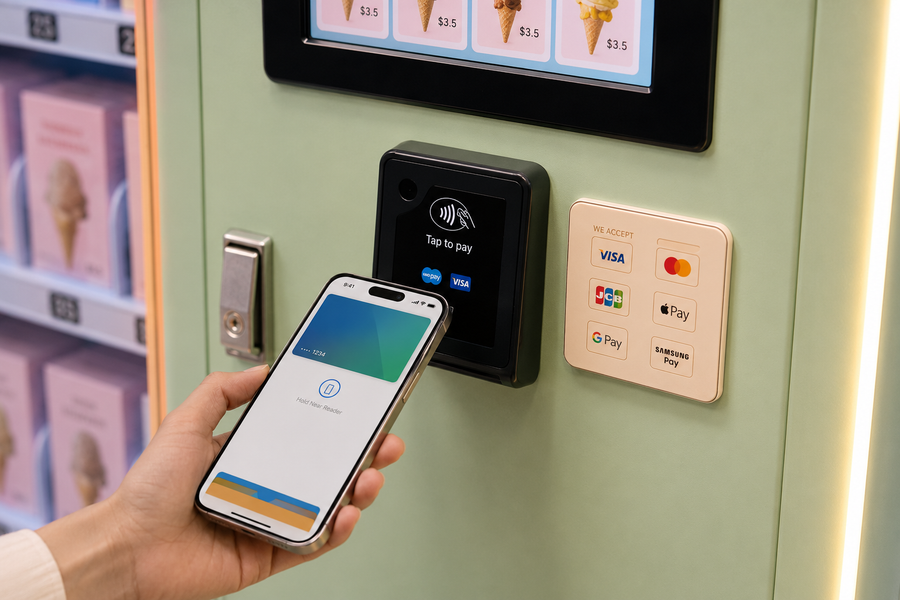

Complete Payment
Pay using the configured local payment method.
3
Smart Elevator Delivery
The spring lane releases the selected item to the moving elevator.
4

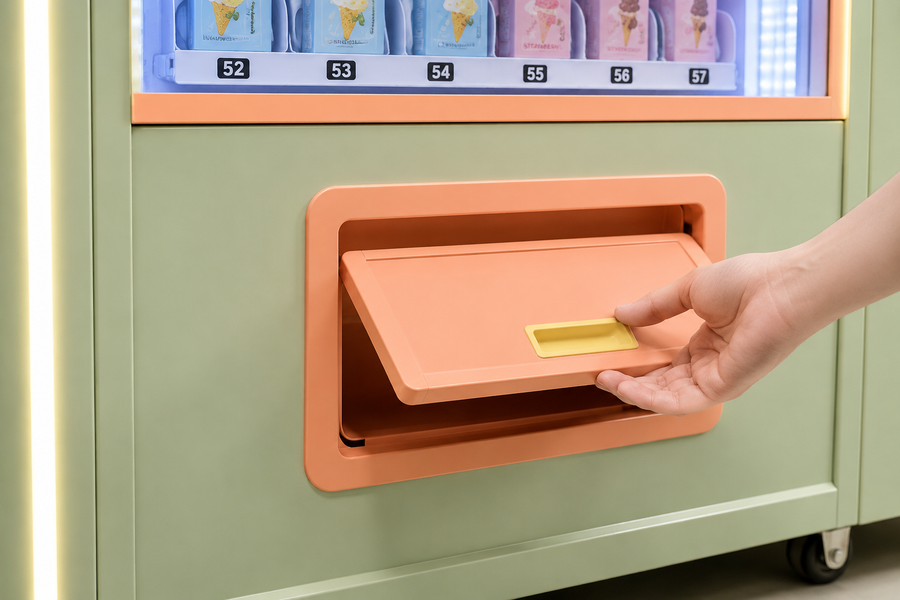

Collect the Product
The product reaches the secure pickup box gently, ready to enjoy.
PAYMENT INTEGRATION
Flexible Payment Options for Different Markets
Payment hardware can be configured according to the destination country, local provider and project requirements.
-
Credit and Debit Cards Support compatible bank-card payment hardware.
-
Contactless and NFC Offer tap-to-pay when supported by the selected provider.
-
QR Code Payment Configure supported QR payment methods for the destination market.
Payment availability varies by country and payment service provider.

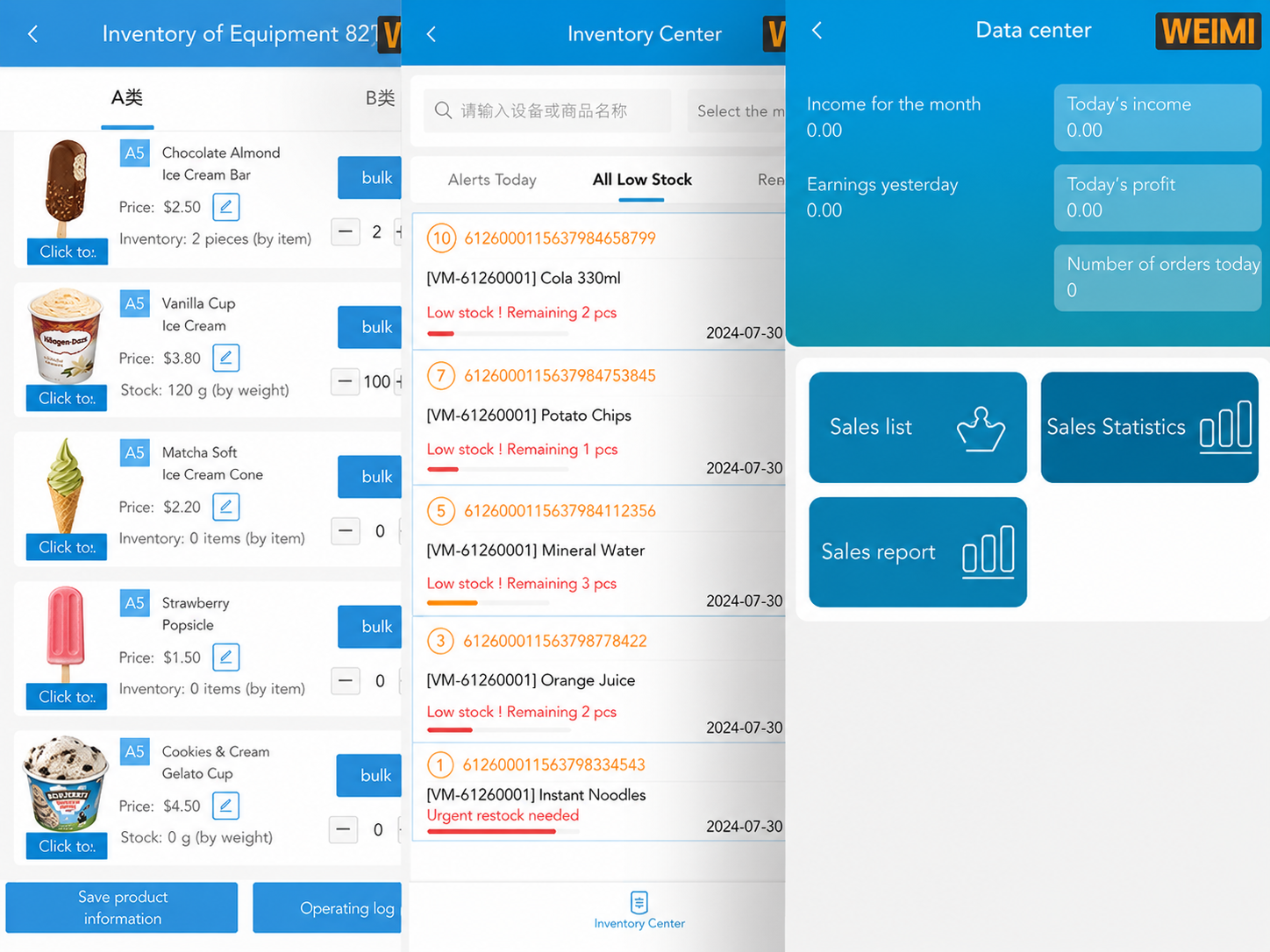

REMOTE MANAGEMENT
Manage Sales, Inventory and Machine Status
Use the management platform to review operational information without visiting every installation location.
-
Sales Reports Review transaction history and product performance.
-
Inventory Monitoring Check remaining stock and prepare replenishment.
-
Machine Status Review connectivity and selected operating alerts.
FROZEN STORAGE
Reliable Low-Temperature Storage
Maintain a stable frozen environment for packaged ice cream, frozen desserts and other compatible products.
-
Stable Temperature Control Maintain the configured temperature during daily operation.
-
Insulated Cabinet Reduce temperature fluctuation and cooling loss.
-
Commercial Refrigeration Designed for continuous unattended retail operation.
-
Temperature Monitoring Review temperature information when supported by the selected system.
Recommended operating zone: approximately -18°C to -20°C for packaged ice cream.
ELEVATOR DELIVERY

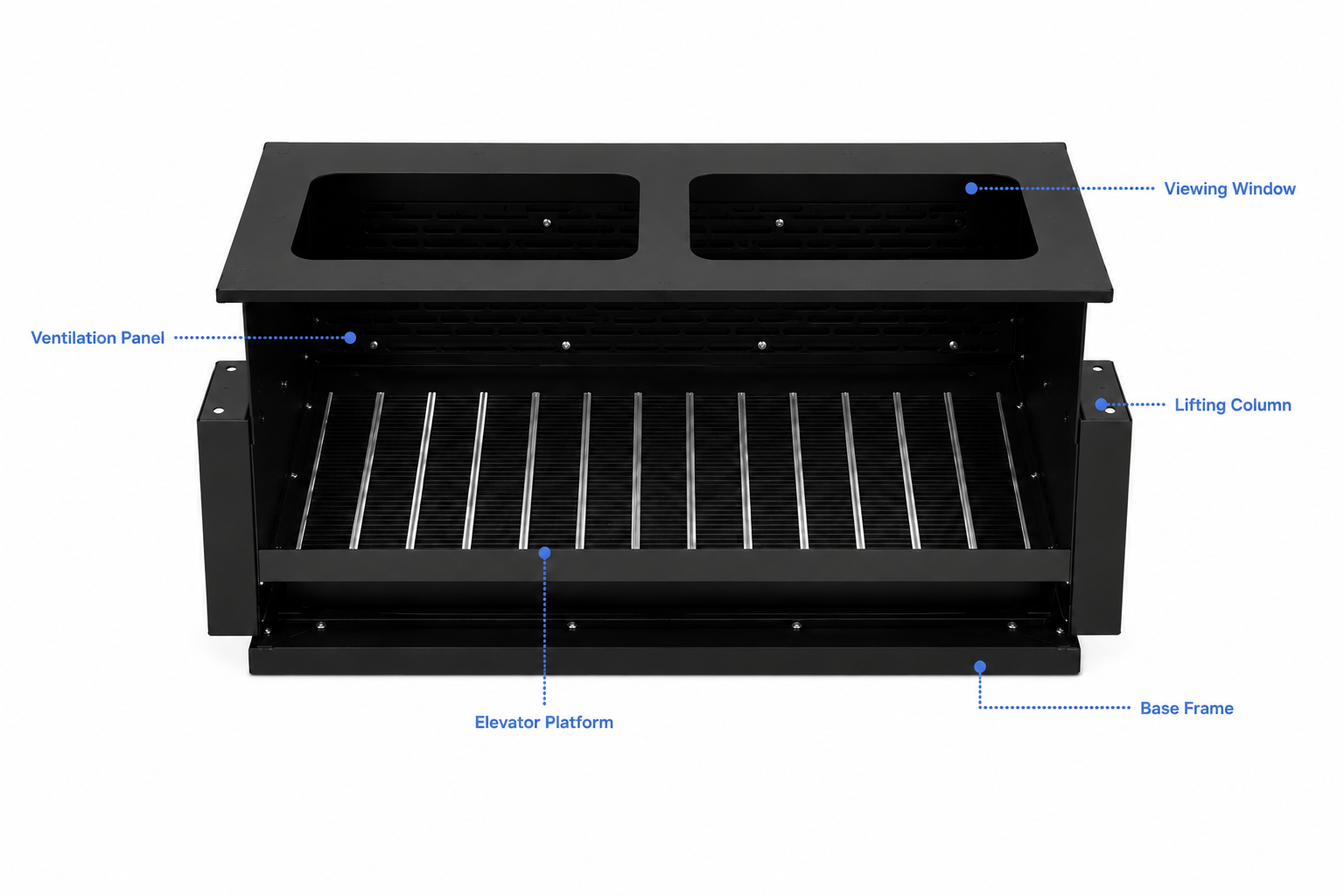

Gentle Product Delivery System
The precision smart elevator receives each item from the spring lane and lowers it smoothly to the secure pickup box for no-drop delivery.
-
Reduced Product Impact Help protect delicate boxes and packaged frozen desserts.
-
Stable Collection Position Deliver purchased items to a convenient pickup height.
-
Wider Product Compatibility Support products that require gentler handling.
-
Controlled Dispensing Release only the selected product after payment approval.

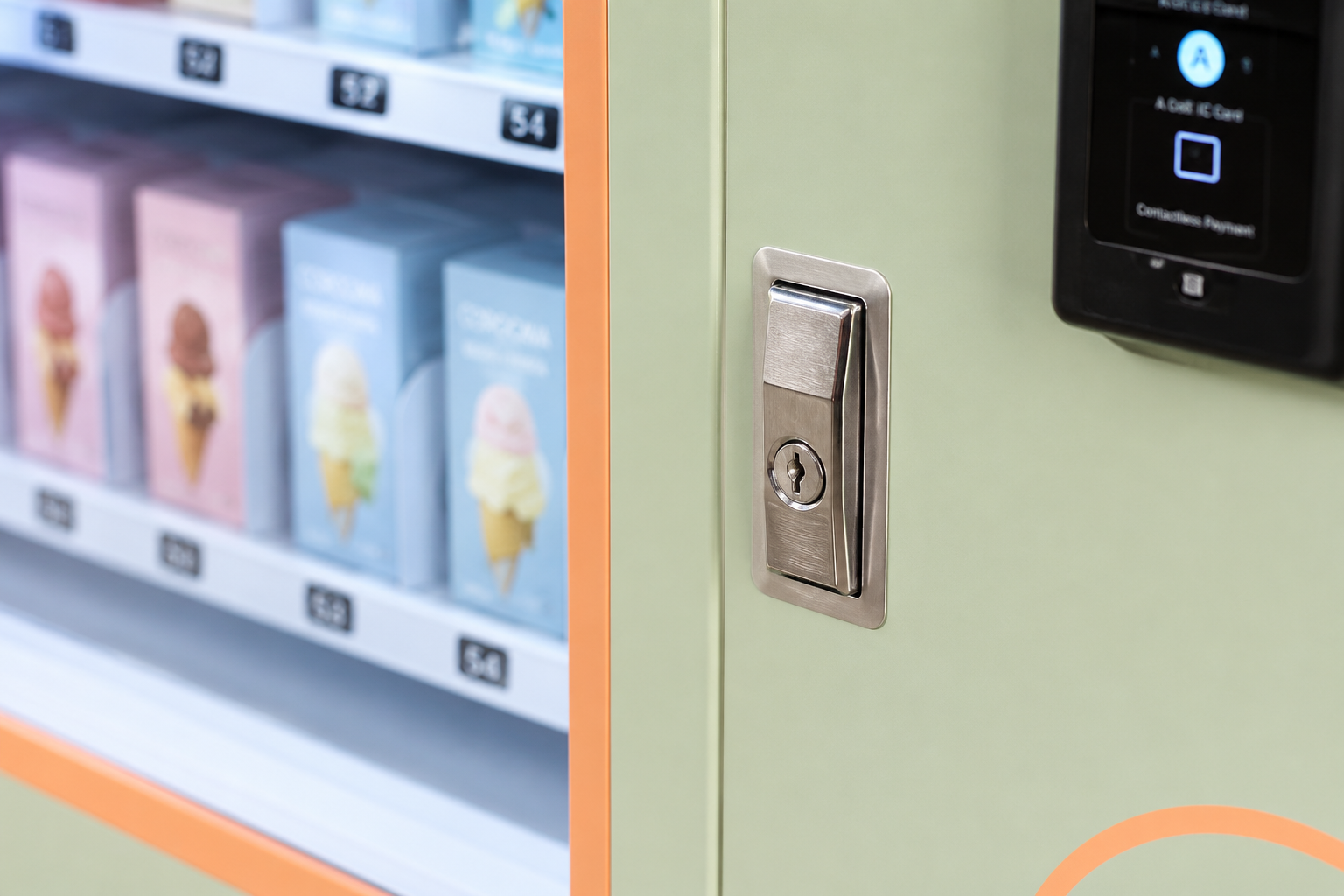

SECURE OPERATION
Secure Dispensing and Product Protection
Support unattended operation with a lockable cabinet, controlled product release and enclosed collection area.
-
Lockable Cabinet Protect internal inventory during operation and replenishment.
-
Payment-Controlled Release Dispense products only after successful transaction approval.
-
Enclosed Pickup Area Separate customer collection from stored inventory.
-
Operational Alerts Receive selected machine alerts when supported by the platform.

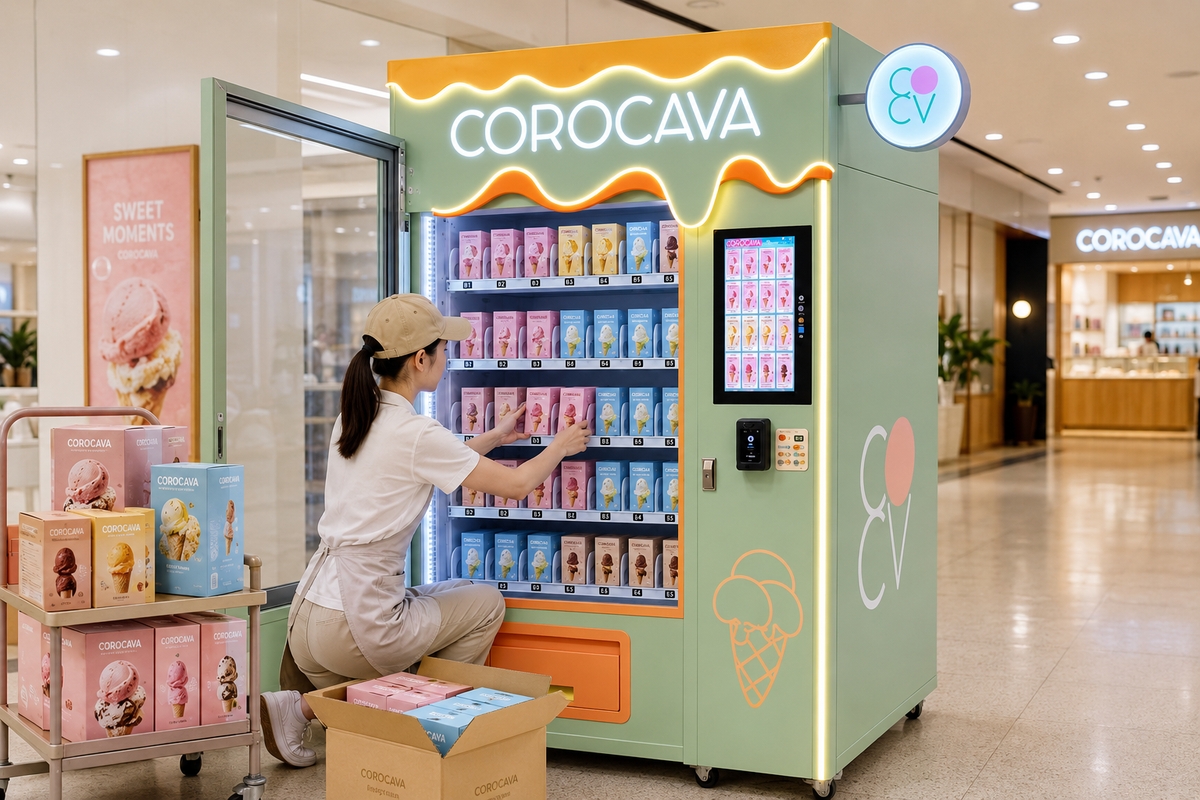

DAILY OPERATION
Easy Restocking and Maintenance
A practical service-door structure helps operators refill products, clean the cabinet and complete routine inspection.
-
Convenient Front Access Open the service area for organized replenishment.
-
Numbered Product Positions Reduce stocking errors through clear channel organization.
-
Routine Cleaning Access Reach product and pickup areas for daily maintenance.
-
Inventory Update Update stock information after replenishment when required.
APPLICATIONS
Ideal Locations for Frozen Retail
Deploy the machine in high-traffic commercial and leisure environments.

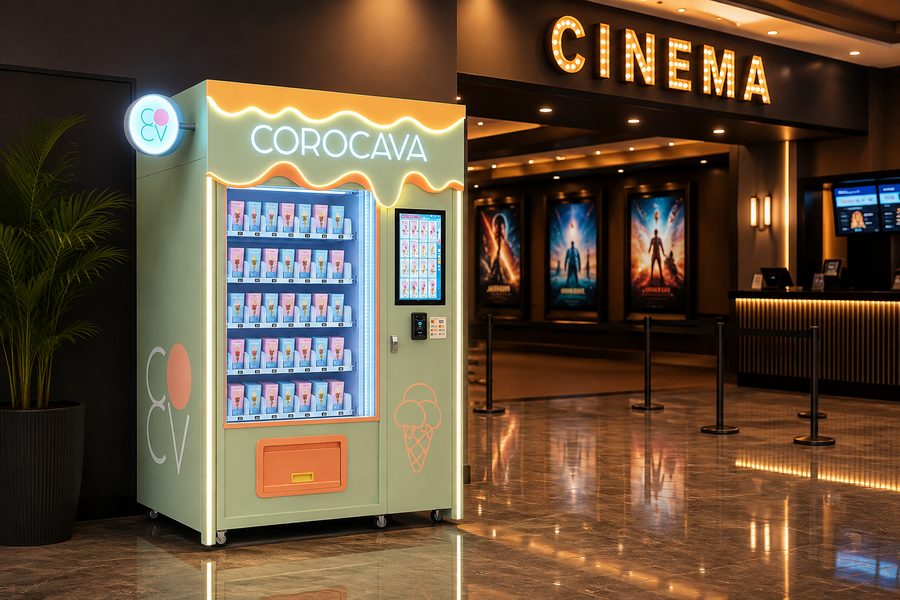

Shopping MallEntertainment
Cinemas, theme parks, arcades and family venues.

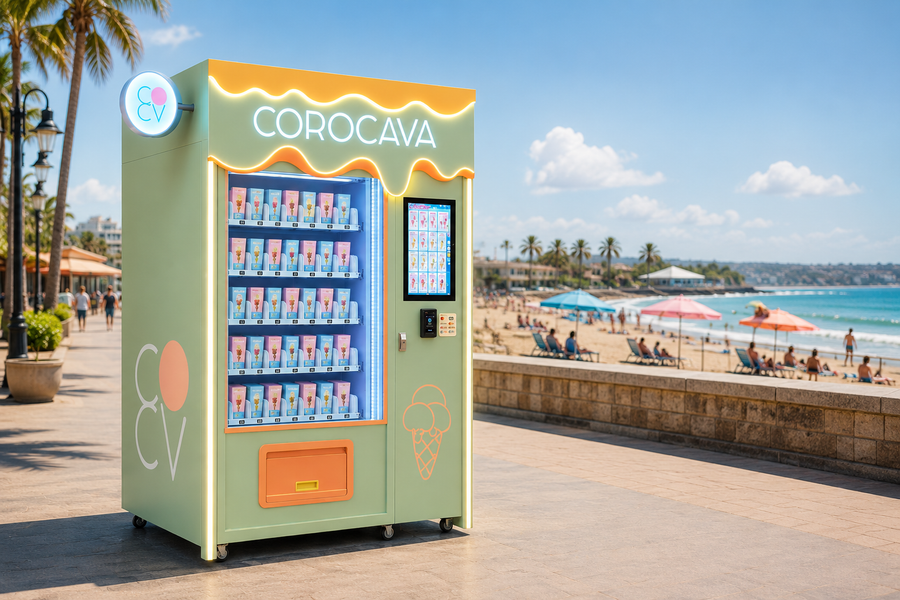

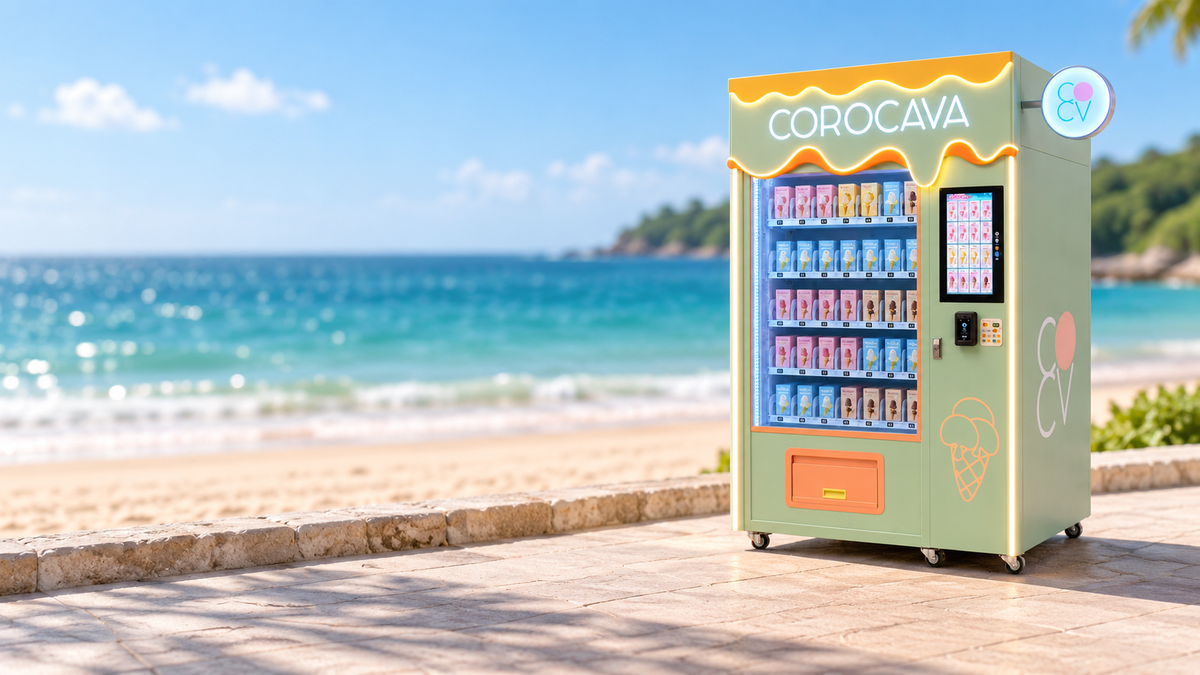

Travel & Leisure
Resorts, beaches, hotels, airports and stations.

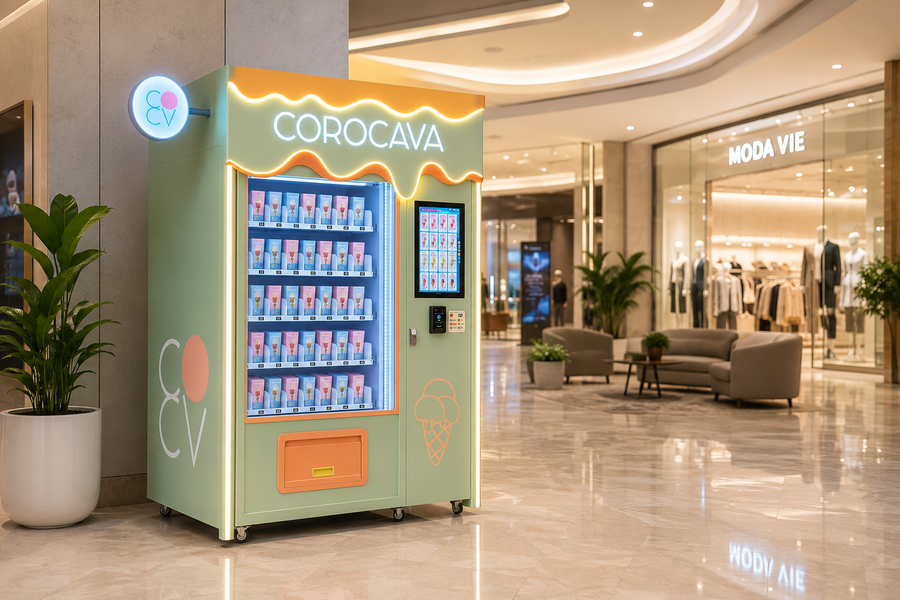

Everyday Convenience
Malls, campuses, offices, hospitals and convenience stores.

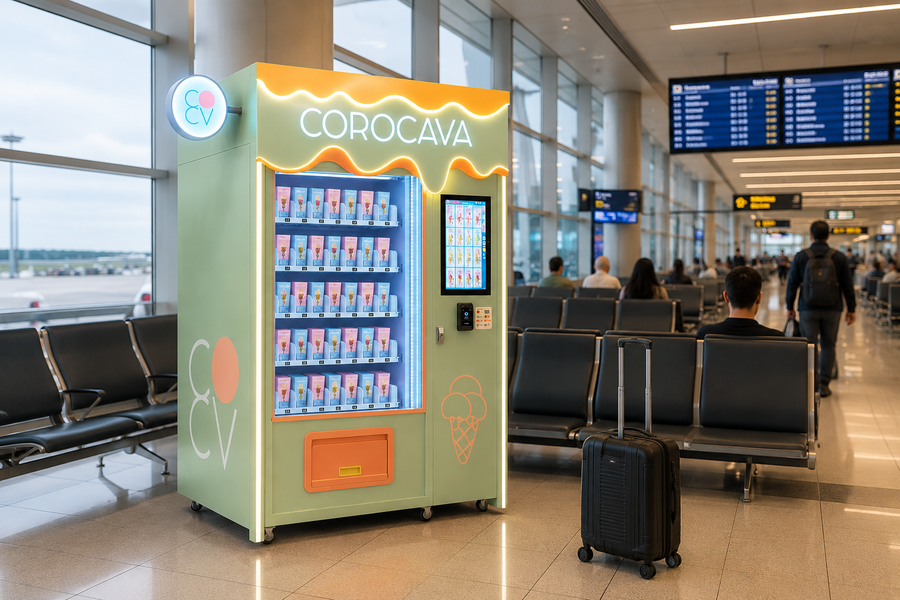

Transport Hubs
Airports, railway stations and other high-traffic transit locations.
Standard models are recommended for indoor or weather-protected locations unless outdoor specifications are confirmed.
OEM & BRANDING

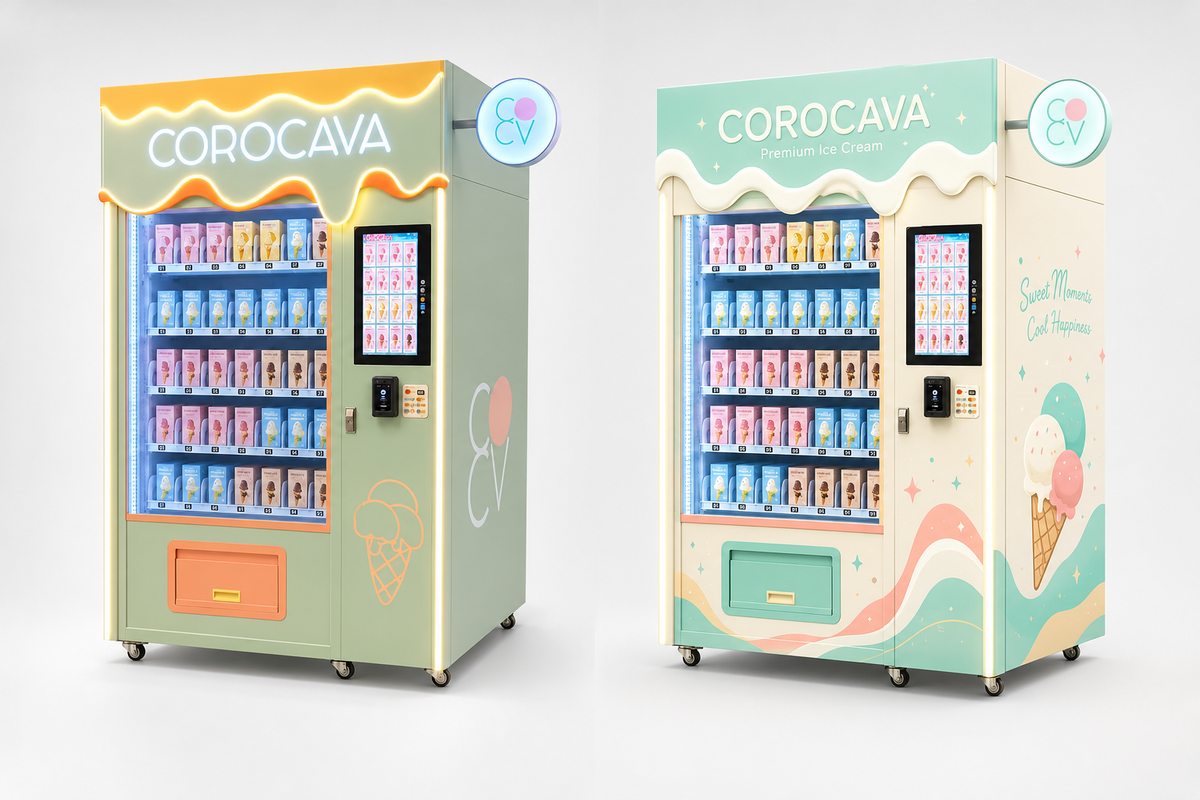

Create a Machine That Matches Your Brand
Customize the cabinet artwork, illuminated sign, touchscreen interface, product layout and payment configuration for your project.
-
Exterior Branding Cabinet colors, logo and full-body graphics.
-
Illuminated Sign Customize the upper lightbox with your branding.
-
Touchscreen UI Customize language, colors and interface content.
-
Payment Hardware Select hardware for the destination market.
PROJECT SUPPORT
Support From Configuration to Operation
We support product testing, machine configuration, branding, delivery and after-sales service.
Compatibility Testing
Test product samples or package data before final channel configuration.
Technical Support
Provide manuals, remote guidance and troubleshooting support.
Spare Parts
Support long-term operation with replacement parts according to the project.
FAQ
Frequently Asked Questions
Answer the questions international buyers usually ask before requesting a quotation.
What products can this machine sell?
It can sell compatible packaged products. Product dimensions, weight and packaging should be confirmed before final channel configuration.
Can the machine appearance be customized?
Yes. Cabinet colors, illuminated signage, logos, full-body graphics and touchscreen interface can be customized.
Can payment methods be configured for our country?
Payment hardware can be selected according to the destination market and supported payment service provider.
Does the product fall during delivery?
No. The precision smart elevator receives the selected item and lowers it smoothly to the secure pickup box.
How many selections does the standard setup offer?
The standard 6 × 9 layout offers up to 54 selections. Total capacity depends on shelf spacing and package dimensions.
Can I manage several machines remotely?
Yes. Cloud tools provide inventory, sales, machine status, alerts and remote merchandising controls.
